x-Weg 1250 mm
y-Weg 630 mm
Steuerung Heidenhain TNC 426 / 430
Gesamtleistungsbedarf 48 kW
Maschinengewicht ca. 12 t
Raumbedarf ca. ca. 5 x 6 x 4 m m
CNC jig boring machine / vertical machining centre
overhauled in 2000
Spindle ISO 50,
Speed range 30-3000 min-1
max. torque 522 Nm
Feed rates 3-2000 mm, rapid traverse 10 m/min
max. distance spindle nose - table surface 725 mm
Projection spindle centre - stand 800 mm.
Space requirement approx. 5 x 5 m,
Weight approx. 12 tonnes

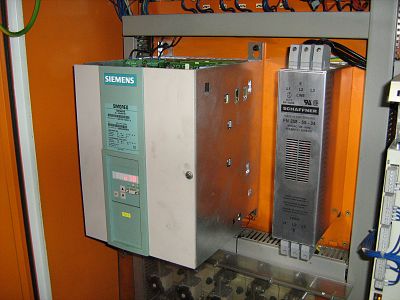

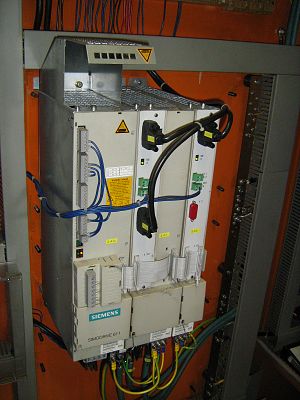

The machine was completely overhauled and modernised in 2000 with digital
drives and Heidenhain control
Fixed table 1200 x 710
36-position tool changer,
Coolant device,

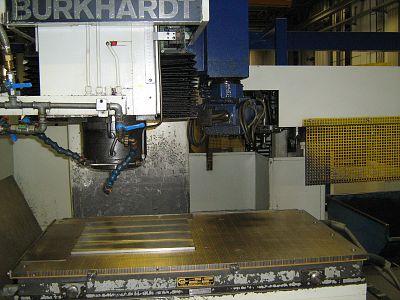

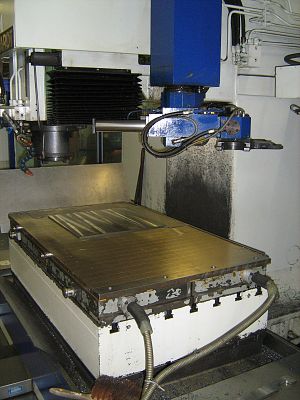

The magnetic clamping table shown is not included in the scope of delivery! -
Working area: 1250 x 630 x 560
Drive: 44 kW

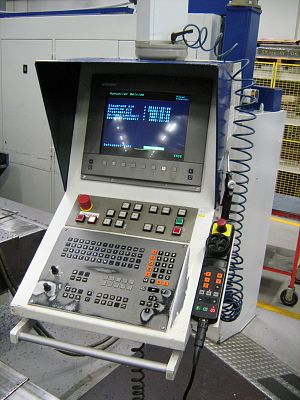

Control: Heidenhain TNC 426 PB
